New
For FLIR Txxx and Exx-Series Cameras; includes Lens Case

FlexView® Dual FOV IR Lens (42°/24°) with Lens Case

サポートページはこちら

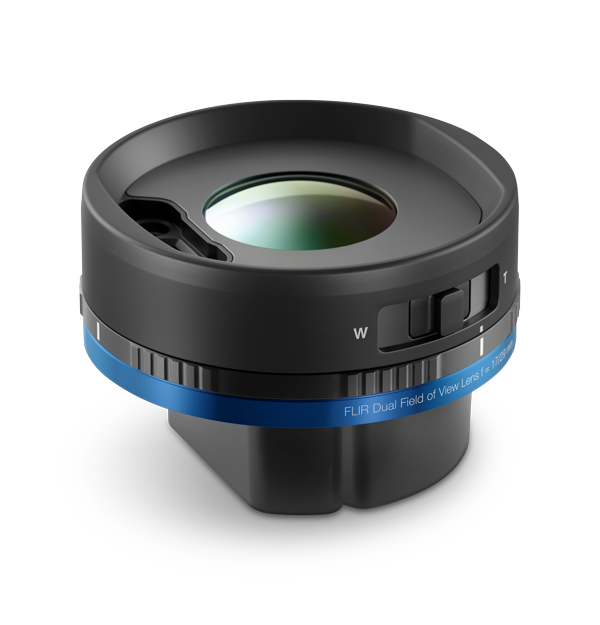

product image

FlexView® dual field of view infrared lens (42°/24°), f=10/17 mm, with lens case. For FLIR T500-Series, T800-Series, and Exx-Series cameras.
(T300954)

You never have to change your lens in the field again—with the push of a button—instantly switch from extra wide views for added safety, wide views for scene context, or tighter views for accurate temperature measurement.

製品仕様
イメージングとレンズ
F_番号
https://flir.custhelp.com/
空間分解能[IFOV]
f = 10 mm (42°)
320 × 240 pixels: 2.4 mrad/pixel
464 × 348 pixels: 2.4 mrad/pixel
640 × 480 pixels: 2.4 mrad/pixel

f = 17 mm (24°)
320 × 240 pixels: 1.4 mrad/pixel
464 × 348 pixels: 1.0 mrad/pixel
640 × 480 pixels: 0.7 mrad/pixel
最小焦点距離
42°: 0.25 m (0.82 ft)
24°: 0.5 m (1.64 ft)
視野角[FOV]
42° × 32°
24° × 18°
焦点距離
42°: 10 mm (0.39 in)
24°: 17 mm (0.67 in)
輸出規制

輸出規制

このページに含まれる情報は、最終製品の仕様に応じて国際武器取引規則(ITAR)(22 CFRセクション120~130)または輸出管理規則(EAR)(15 CFRセクション730~774)の対象となる可能性のある製品に関連しています。管轄区域および分類は、要請に応じて提供されます。

FlexView® Dual FOV IR Lens (42°/24°) with Lens Case
